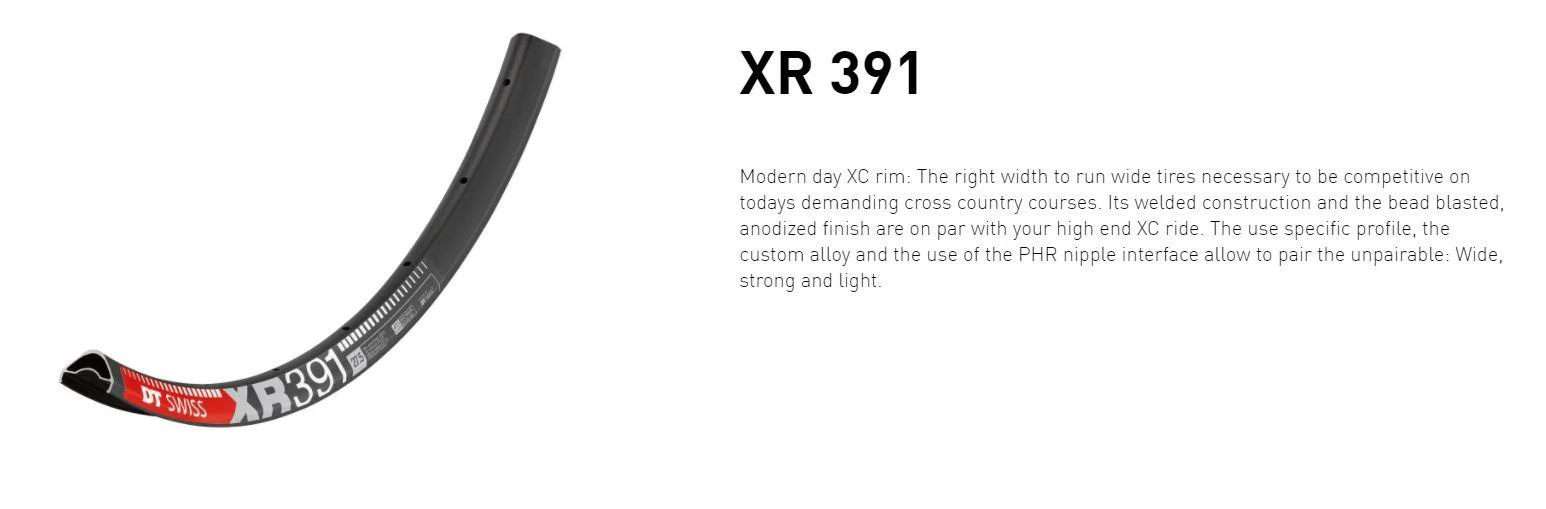

Modern day XC rim: The right width to run wide tires necessary to be competitive on todays demanding Cross Country courses. The welded construction of the XR 391 and the bead blasted, anodized finish are on par with your high end XC ride. The use specific profile, the custom alloy and the use of the PHR nipple interface allow to pair the unpairable: Wide, strong and light.

MATERIAL
ALUMINIUM

INNER WIDTH
25 mm

OUTER WIDTH
29 mm

RIM DIAMETER

27.5" (650b), 29"



ERD

569mm, 607mm



BRAKE INTERFACE
Disc

NUMBER OF HOLES
28, 32

BORE TYPE
Non eyelet PHR

RECOMMENDED SYSTEM WEIGHT MAX.
110 kg

ASTM CLASSIFICATION
3
