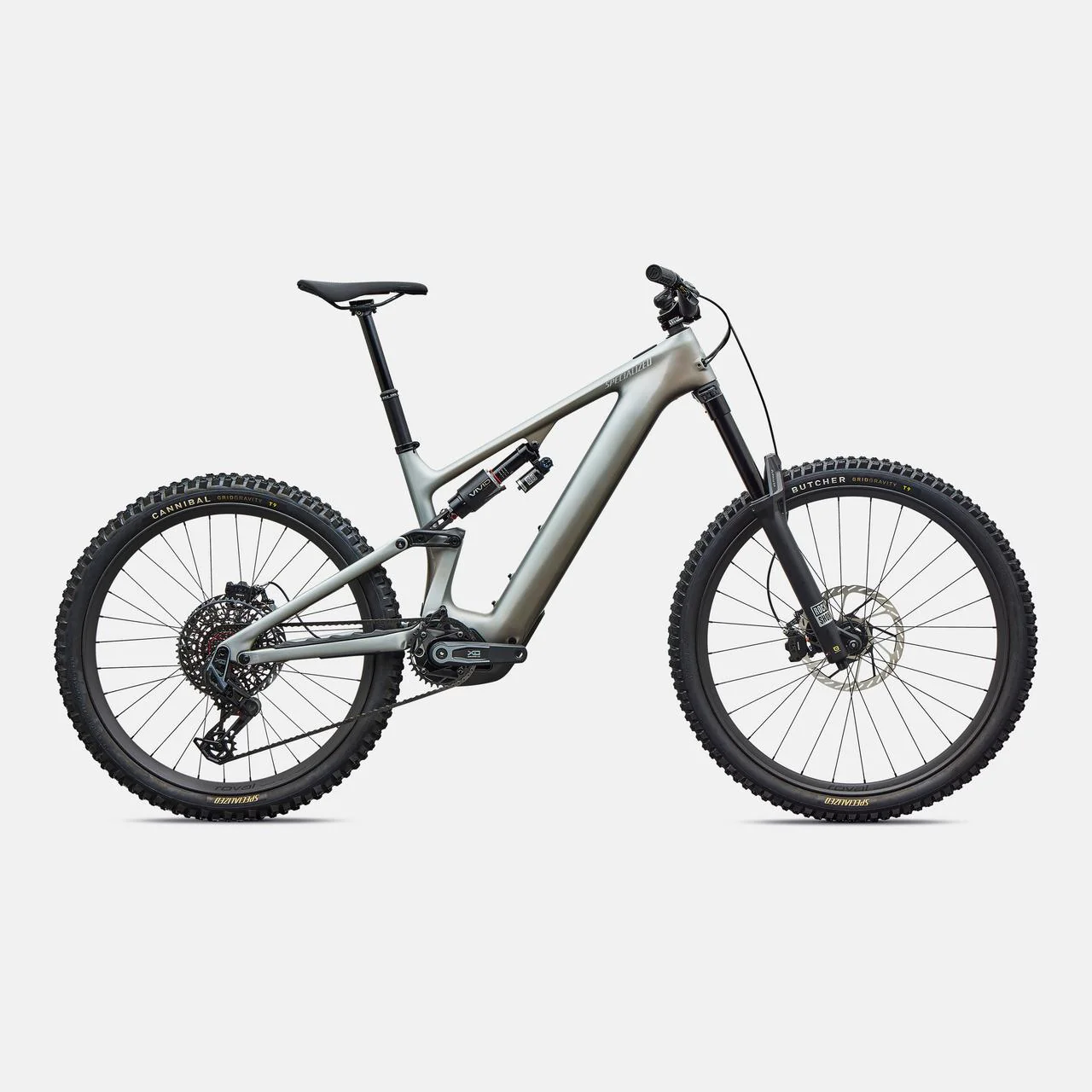

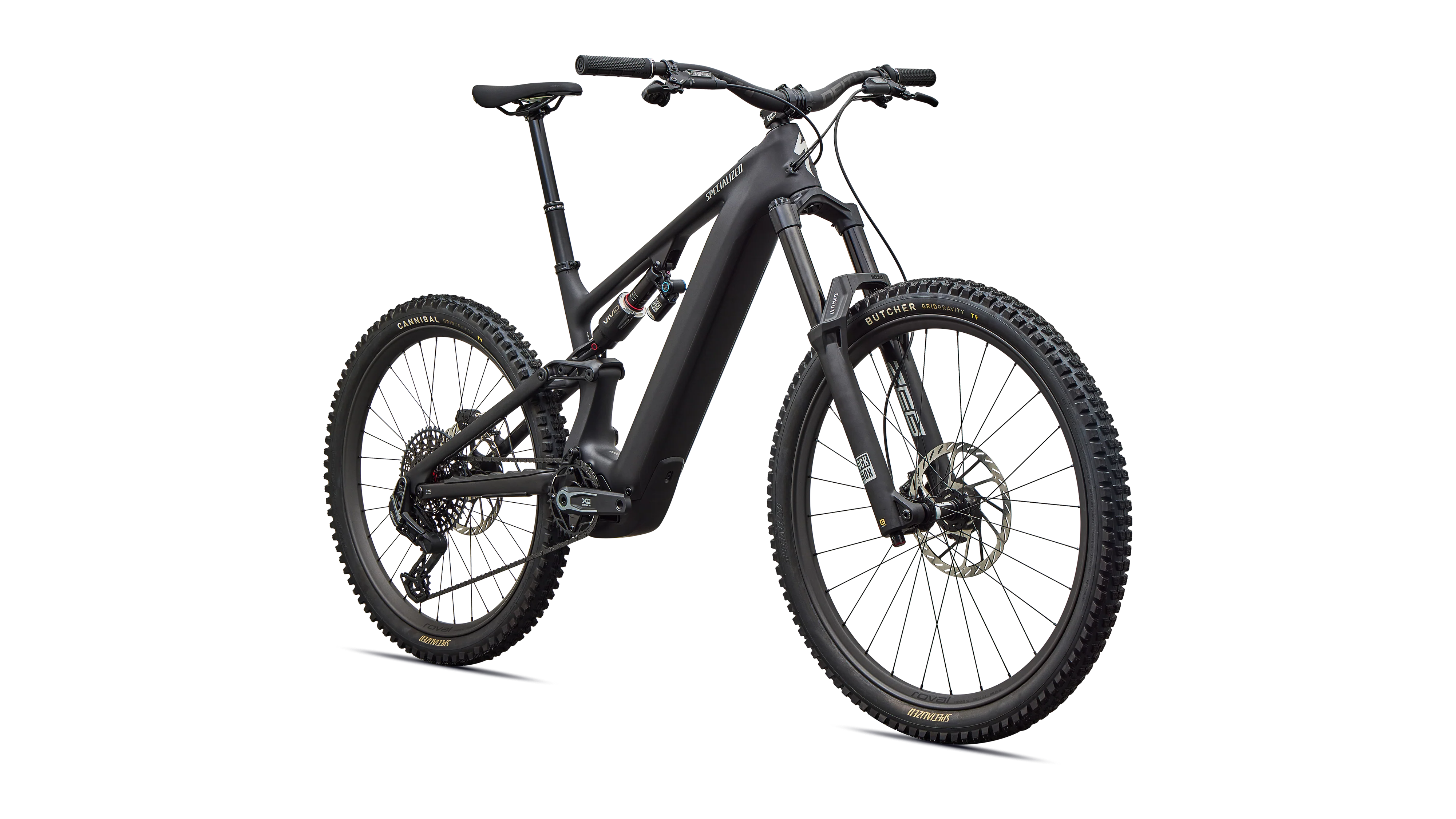

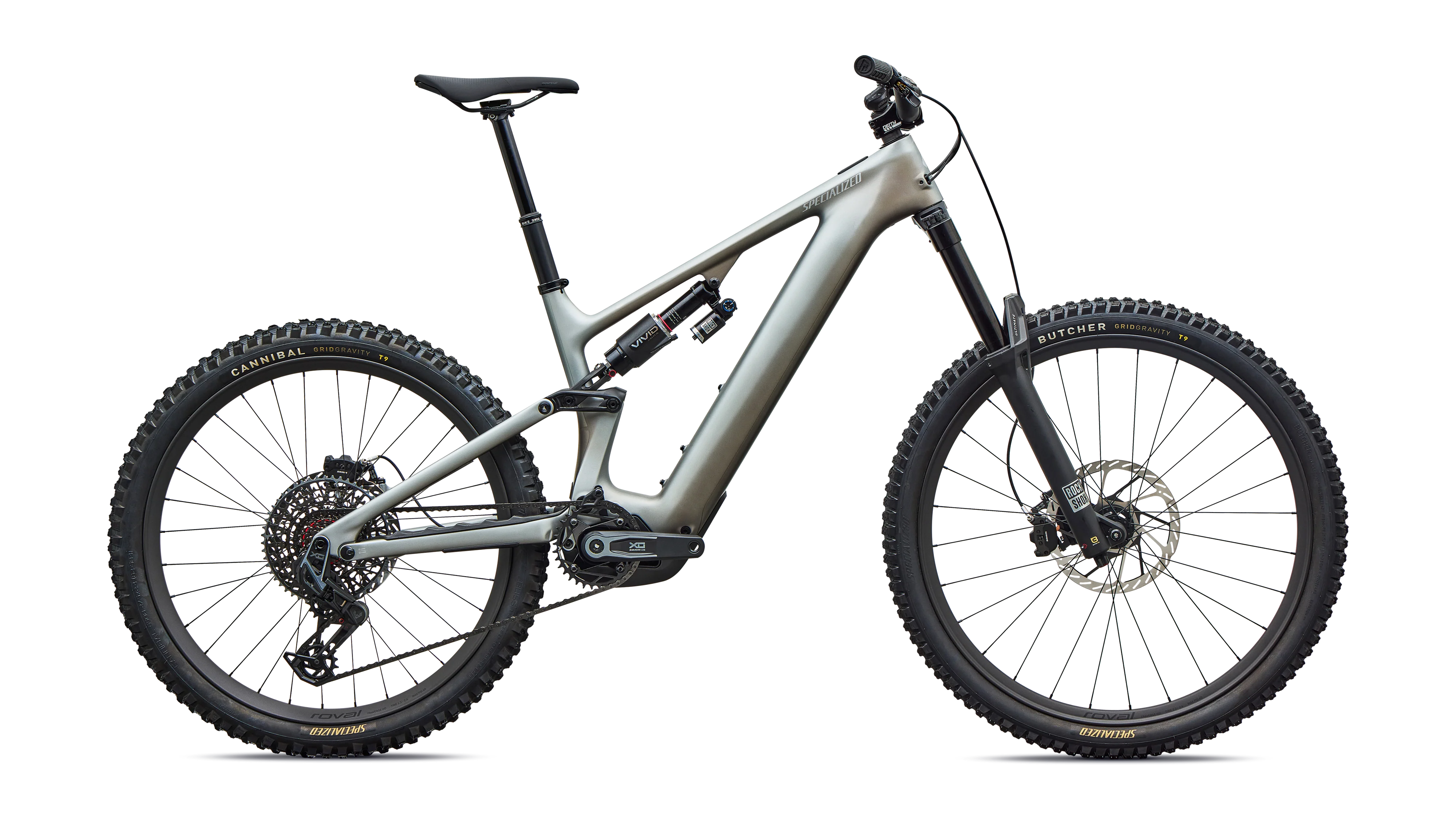

Levo 4 EVO Pro

SuperNatural Power, Capability, and Range

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric Enduro.

Use
Electric Enduro

E-System
Specialized 3.1 Motor with 810 Watts & 105 Nm
840Wh Battery
Up to 5 hour range with optional Range Extender

Frame
Levo EVO FACT 11m carbon frame, Geo Adjustable & SWAT Storage

Suspension
Fork: 180mm RockShox Zeb Ultimate
Shock: Vivid Ultimate Air Linear

Drivetrain
SRAM X0 Eagle Transmission

Wheels
Traverse HD with DT Swiss 350 hubs

E-Bike

Battery
840Wh battery

UI / Remote
Mastermind TCU, 2.2" high resolution screen, fully customizable with Specialized app, compatible with Apple Find My

Motor
Specialized 3.1 Motor, 105Nm torque, 810W power

Charger
Specialized 4amp charger

Frameset

Frame
Levo EVO FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel / 27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage

Seat Binder
Alloy, 38.6mm

Suspension

Fork
All New SRAM FS ZEB Ultimate, 29", 180mm travel, Linear XL spring with ButterCups and adjustable bottom out, Charger 3.2 damper with HSC and LSC, rebound adjust

Rear Shock
All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper with HSC and LSC adjust, HBO adjust, rebound adjust

Brakes

Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain

Chainring
SRAM 34t T-Type chainring, 104 BCD, steel

Shift Levers
SRAM AXS Pod Controller with discrete clamp

Rear Derailleur
SRAM X0 Eagle Transmission

Chain
SRAM X0 Eagle Transmission 12-Speed Flattop Chain

Crankset
SRAM X0 Alloy crank, 155mm, ISIS interface

Cassette
SRAM XS 1295, 12-speed, 10-52t

Wheels & Tyres

Front Tyre
Butcher, GRID Gravity, T9, TLR, 29x2.4"

Rear Tyre
Cannibal GRID Gravity T9 TLR Downhill Tyre, 27.5x2.4"

Front Wheel
Traverse HD Carbon 29", 28H, carbon rim, 30mm inner width, DT Swiss 350 hub

Rear Wheel
Traverse HD 350, 27.5", 32H, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148mm

Inner Tubes
Standard, Presta valve

Cockpit

Seatpost
Bike Yoke Revive Max 3.0, 34.9mm
S2: 125mm
S3: 160mm
S4: 185mm
S5/S6: 213mm

Saddle
Bridge Expert with MIMIC, hollow titanium rails

Grips
Deity Lockjaw, lock-on, 32mm OD, 133mm length, black

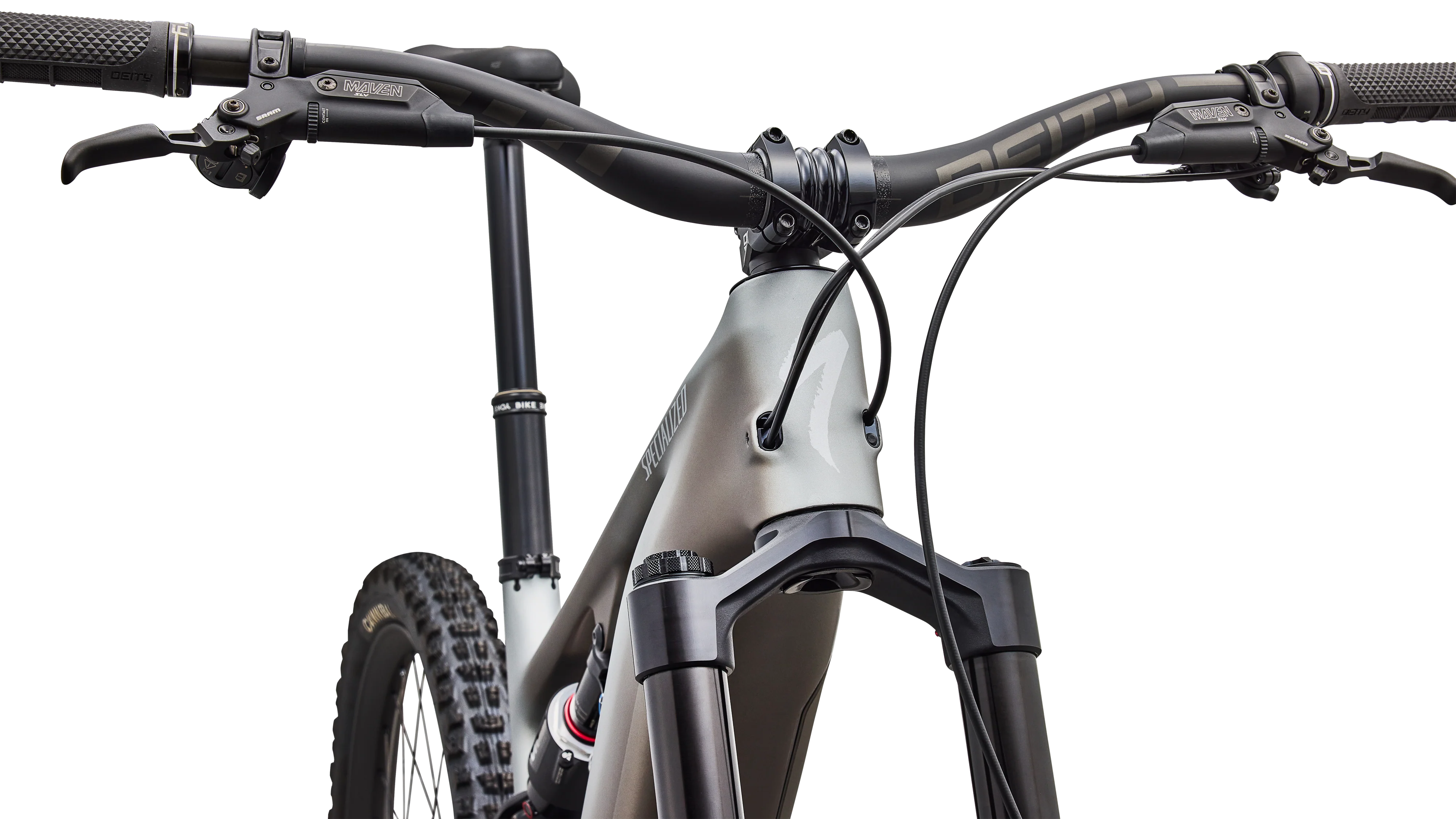

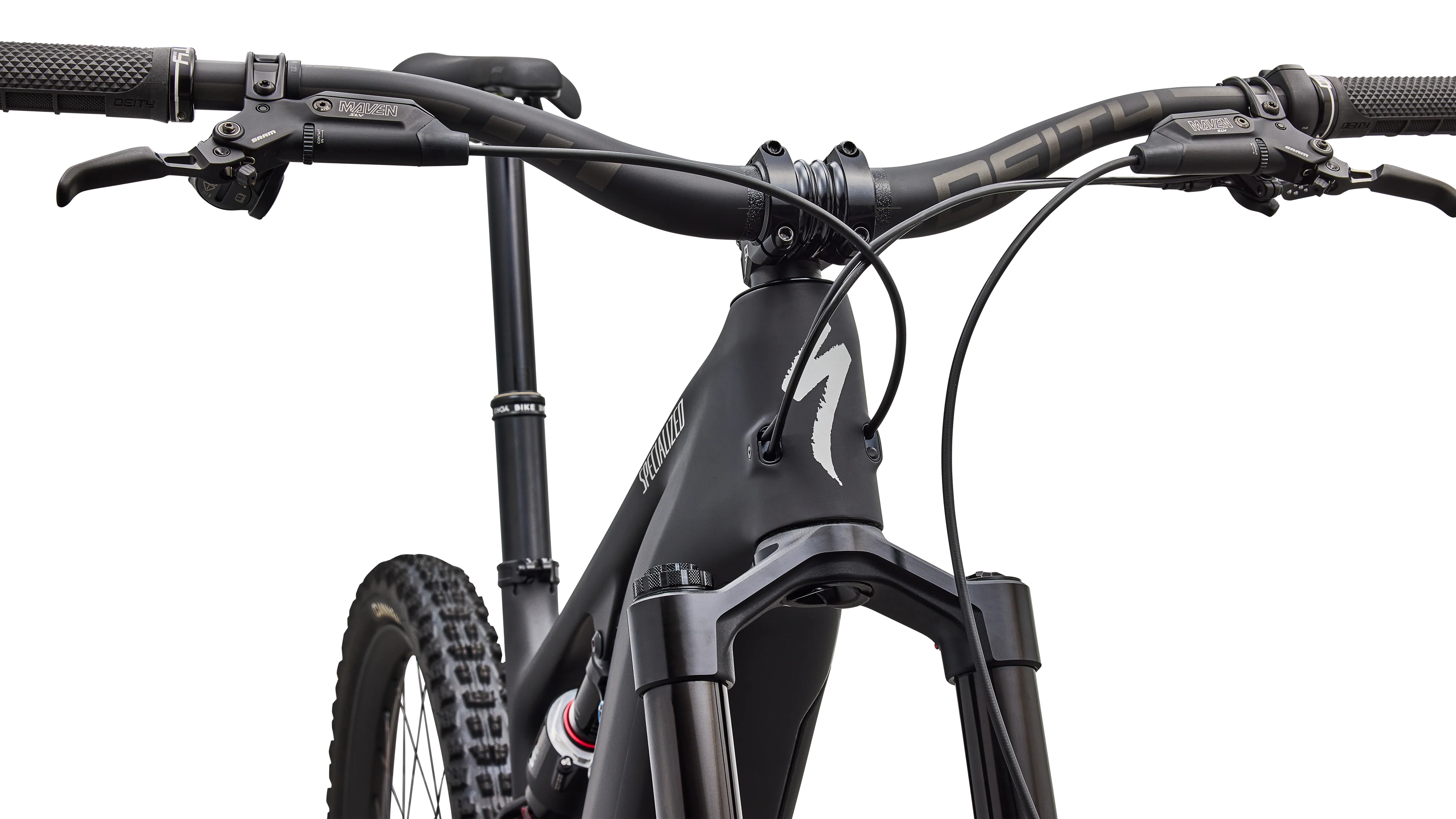

Handlebars
Deity Speedway Carbon, 5° upsweep, 9° backsweep
S1-S2: 810mm width, 30mm rise
S3-S6: 810mm width, 50mm rise

Stem
Deity, 35mm clamp, 42mm length

Accessories

SWAT
SWAT internal downtube storage

Weight

Weight
24.4 kg (53 lb, 12.7 oz)

Weight Size
S4
